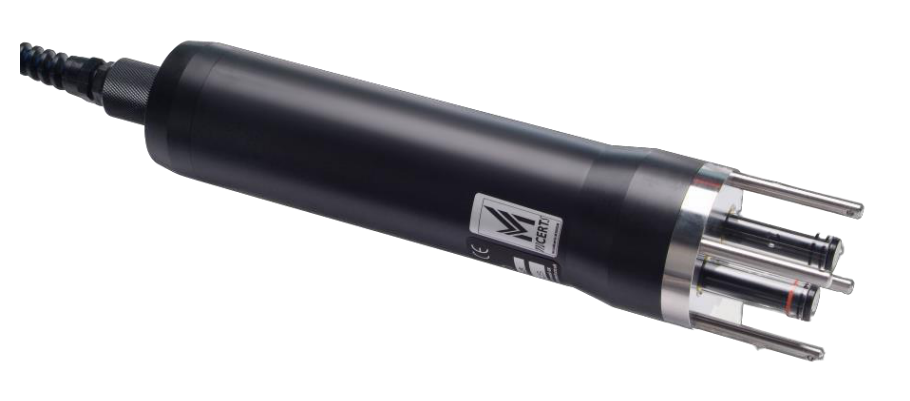

TurbiTechw2 LA sludge concentration meter

The sensor is equipped with a mechanical automatic cleaning system to ensure that the optical measurement surface is always kept clean. The cleaning system is designed to avoid the troubles caused by textile entanglement, etc., without soiling the optical measurement system. We have 46 years of sensor production experience, and the mechanical automatic cleaning system has been successfully used for 25 years, which is incomparable to other cleaning methods.
  • The TurbiTechw2 LA sludge concentration sensor is designed and applied to sewage treatment systems, such as activated sludge, usually in the range of 1500mg/l-3500mg/l. The sensor is also designed to measure refluxing activated sludge (r. A.S.), excess sludge (S.A.S.) suspended solids, turbidity, or any other higher measurement range in applications.

    Compared with other similar products, the larger optical measurement surface and sample measurement volume ensure that the sensor can provide real and reliable information to reflect the content of solid particles in the process.   The dirt and grease deposited on the sensor will not prevent the sensor from giving accurate readings. This   it is incomparable to other sensors with only a small measuring area. LA  the sensor uses infrared light, wavelength 860 nm. The automatic cleaning mechanism is cleaned by two nitrile 'H' rings. Cheng, the cleaning process is automatically controlled by the controller, and the time for each cleaning is only 90  seconds. Use users can set the cleaning frequency at will. In normal use, the user is installing TurbiTechw2 LA  after the sensor, no manual maintenance is required.

    • Size
      80mm(Diameter)x 470(Length) mm
    • Protection level
      Detector: IP68, maximum depth of 2 m (underwater type) Transmitter: IP65 (jetproof type) Pollution degree 2
    • Housing material
      Stainless steel (1.4571/1.4404) or titanium (3.7035)
    • Contact with water
      1.316 Stainless steel, glass
    • Weight
      2.2 kg (Including 10m cable)
    • Sealing material
      Nitrile
    • Maintain
      Automatic cleaning, no maintenance. Replace the wiper and desiccant every year (depending on the cleaning cycle setting)
    • Operating temperatur
      -20 to 70°C
    • Storage temperature
      -20 to 60°C
    • Position
      Indoor/outdoor
    • Cable size
      10m standard, 100m longest
    • Installation
      Immersion
    • Measurement accuracy
      Better than 5%
    • Resolution
      +/-2% Depending on the setting range
    • Measuring principle
      Infrared light
    • Wavelength
      860 nm Infrared light
    • Response time
      0.2s
    • Allow overpressure
      10m
    • Maximum range
      0 - 20,000 mg/l
    • Minimum range
      0 - 4,000 mg/l
