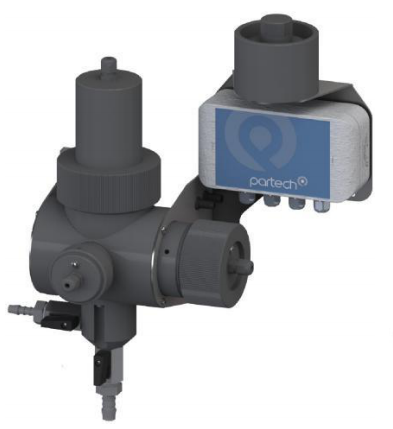

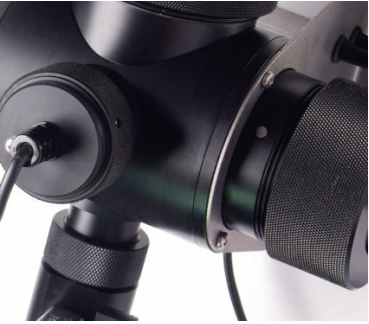

TurbiTechw 2 LR ultra-low range turbidity analyzer

TurbiTechw2 LR ultra-low range turbidity analyzer is designed to monitor the final effluent quality of drinking water and filtered water. The sensor is very sensitive and can distinguish changes in turbidity below 0.1NTU. The 90 ° scattered light technology makes The sensor very sensitive to different particle diameters, from colloidal substances to larger particles, raw water and sometimes large mineral particles that can be found in dispersed water samples can be directly measured. The uni
  •

    >>>>

    Typical application

    1. raw water
      Tap water
      Filtered water
      Filter backwash control
      Sedimentation tank
      Process control

    >>>>

    measurement principle

               90 scattered light



    >>>>

    applicable controller

         7300w2 controller





    • Size
      440 x 200 x 200 mm (HxWxD)
    • Weight
      0.5KG
    • Protection level
      Detector: IP68, maximum depth of 2 m (underwater type) Transmitter: IP65 (jetproof type) Pollution degree 2
    • Housing material
      Stainless steel (1.4571/1.4404) or titanium (3.7035)
    • Contact with water
      1.316 Stainless steel, glass
    • Connection
      Entrance:½” BSP    Export: ¼” BSP
    • Sealing material
      Nitrile
    • Maintain
      Automatic cleaning, no maintenance. Replace the wiper and desiccant every year (depending on the cleaning cycle setting)
    • Operating temperatur
      -20 to 70°C
    • Storage temperature
      -20 to 60°C
    • Position
      Indoor/outdoor
    • Power supply
      2 Volts from Monitor
    • Measurement accuracy
      Better than +/-2% FSD
    • Resolution
      +/-1% or better
    • Repeatability
      Better than +/-1%
    • Measuring principle
      90° scattered light
    • Response time
      T90<2min flow rate 1 l/min
    • Allow overpressure
      1bar
    • Flow rate
      0.5 l/min to 5 l/min
    • Minimum range
      0 – 5 to 0 – 30 NTU
    • Installation
      Panel mounting
