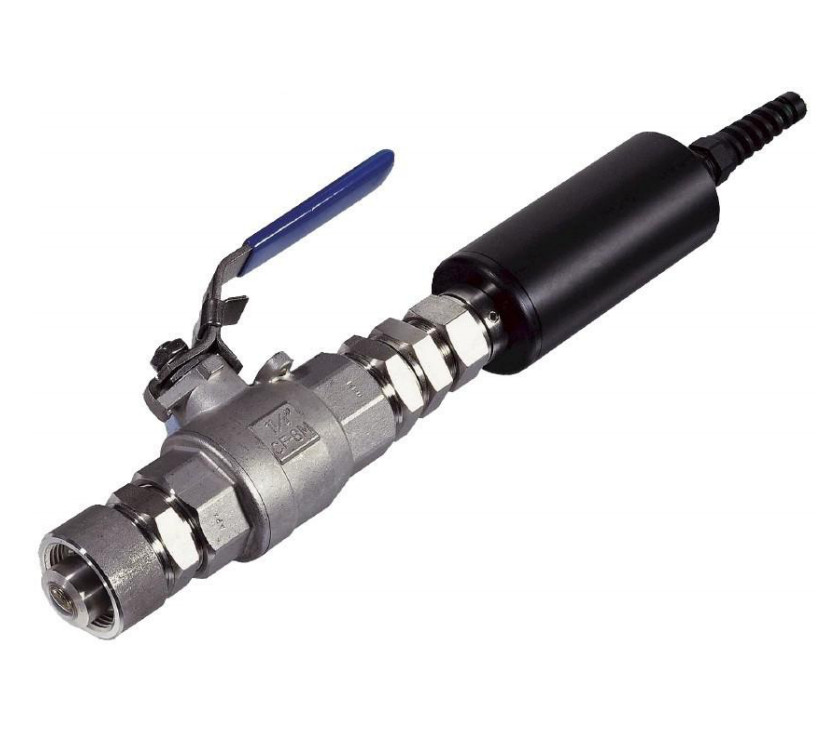

IL55BV2 pipeline plug-in sludge concentration

The sludge concentration of IL55BV2 pipeline insertion type is used to measure high concentration suspended solids by pipeline insertion type installation. When the pipeline diameter is greater than 65mm, it can be installed and used. The sensor is designed for water treatment applications and can provide stable and reliable measurement without any maintenance after installation.
  •

    >>>>

    Typical application

    1. return sludge control
      Sludge concentration and dehydration
      Water treatment process control

    >>>>

    measurement principle

               180 ° backscattered light

    >>>>

    characteristics

    1. ball valve installation, can be operated under pressure
      Not affected by bubbles
      Sapphire optical components, not easy to wear
    >>>>

    advantages

    1. supernormal service life (design life 10 years)
      No need for any maintenance, no maintenance Chen Ben
      More stable measurements, more accurate readings



    order code: 164860
    Normal delivery period: 4-6 weeks (for reference only), subject to the contract
    Origin: UK

    1.
    2.
    3.
    • Weight
      4.2kg
    • Size
      Length 392mm
    • Protection level
      Detector: IP68, maximum depth of 2 m (underwater type) Transmitter: IP65 (jetproof type) Pollution degree 2
    • Housing material
      Stainless steel (1.4571/1.4404) or titanium (3.7035)
    • Cable interface
      Glan one cable
    • Cable type
      3-core, anti-corrosive soil
    • Cable size
      10m standard, 100m longest
    • Maintenance interval
      No need for routine maintenance, regular cleaning may be required depending on application conditions
    • Operating temperatur
      0-60℃
    • Storage temperature
      -20 to 60°C
    • Installation
      Pipe plug-in type (minimum pipe diameter 65mm), optional flange mounting
    • Power supply
      2 Volts from Monitor
    • Digital communicatio
      0-5mA
    • Measurement accuracy
      Better than 5%
    • Resolution
      +/-2% Depending on the setting range
    • Repeatability
      Better than +/-1%
    • Measuring principle
      Backscattered light (180° scattering)
    • Light source
      960nm
    • Response time
      0.5s
    • Allow overpressure
      2bar
    • Flow rate
      Will not be affected by the flow rate, but avoid static points and excessive fluctuations
    • Maximum range
      0-5%SS or 0-50000mg/l
    • Minimum range
      0-0.5%SS or 0-500mg/l
